Configuration

Viseron uses a YAML based configuration.

If no /config/config.yaml is found, a default one will be created for you.
You need to fill this in order for Viseron to function.

You can edit the config.yaml in whatever way you like, but using the built in Configuration Editor is recommended.

tip

The built in Configuration Editor has syntax highlighting, making your YAML endevours a bit easier.

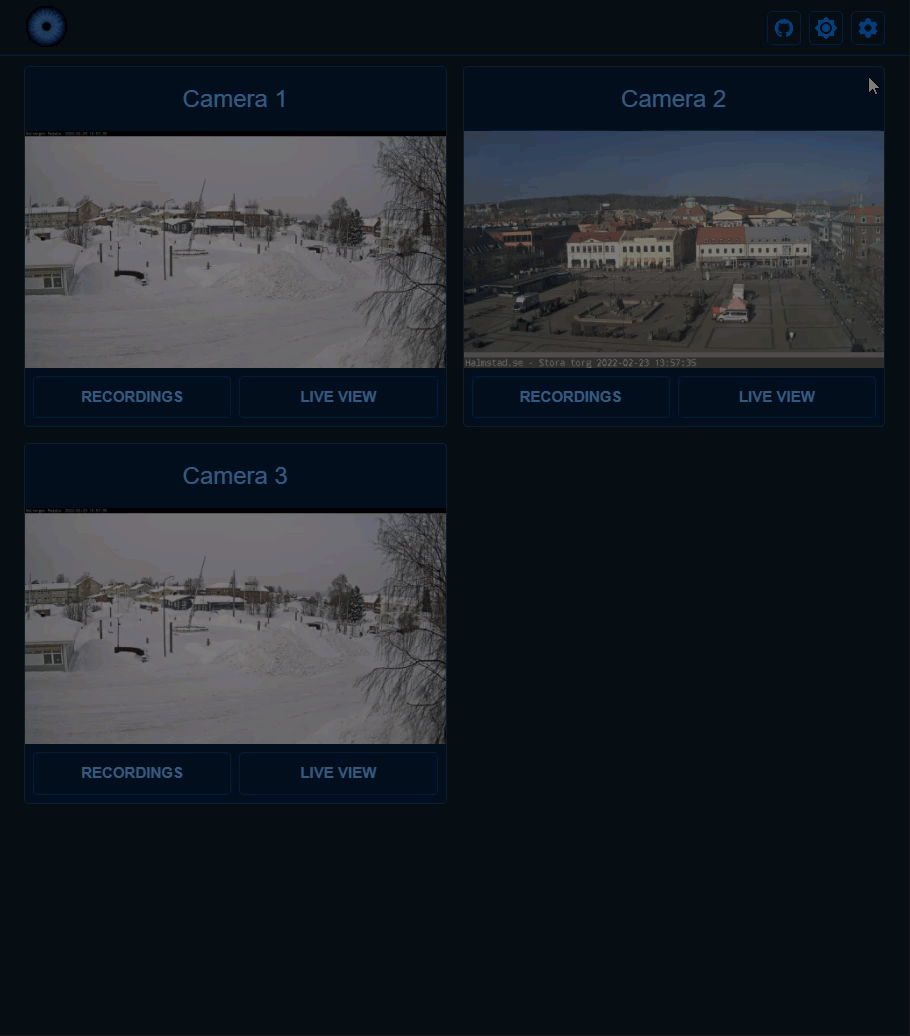

Demonstration of the Editor

Example configuration

Below is an example configuration with publicly available cameras.

warning

This configuration serves as an example only.
The cameras are not hosted by Viseron, and are not guaranteed to be online at all times.

Keep reading so you get a better understanding of how to configure Viseron for your own cameras.

Example configuration

/config/config.yaml

ffmpeg:
  camera:
    viseron_camera:
      name: Camera 1
      host: 195.196.36.242
      path: /mjpg/video.mjpg
      port: 80
      stream_format: mjpeg
      fps: 6
      recorder:
        idle_timeout: 1
        codec: h264
    viseron_camera2:
      name: Camera 2
      host: storatorg.halmstad.se
      path: /mjpg/video.mjpg
      stream_format: mjpeg
      port: 443
      fps: 2
      protocol: https
      recorder:
        idle_timeout: 1
        codec: h264
    viseron_camera3:
      name: Camera 3
      host: 195.196.36.242
      path: /mjpg/video.mjpg
      port: 80
      stream_format: mjpeg
      fps: 6
      recorder:
        idle_timeout: 1
        codec: h264

mog2:
  motion_detector:
    cameras:
      viseron_camera:
        fps: 1
      viseron_camera2:
        fps: 1

background_subtractor:
  motion_detector:
    cameras:
      viseron_camera3:
        fps: 1
        mask:
          - coordinates:
              - x: 400
                y: 200
              - x: 1000
                y: 200
              - x: 1000
                y: 750
              - x: 400
                y: 750

darknet:
  object_detector:
    cameras:
      viseron_camera:
        fps: 1
        scan_on_motion_only: false
        labels:
          - label: person
            confidence: 0.8
            trigger_event_recording: true
      viseron_camera2:
        fps: 1
        labels:
          - label: person
            confidence: 0.8
            trigger_event_recording: true
      viseron_camera3:
        fps: 1
        labels:
          - label: person
            confidence: 0.8
            trigger_event_recording: true

nvr:
  viseron_camera:
  viseron_camera2:
  viseron_camera3:

webserver:

logger:
  default_level: debug
